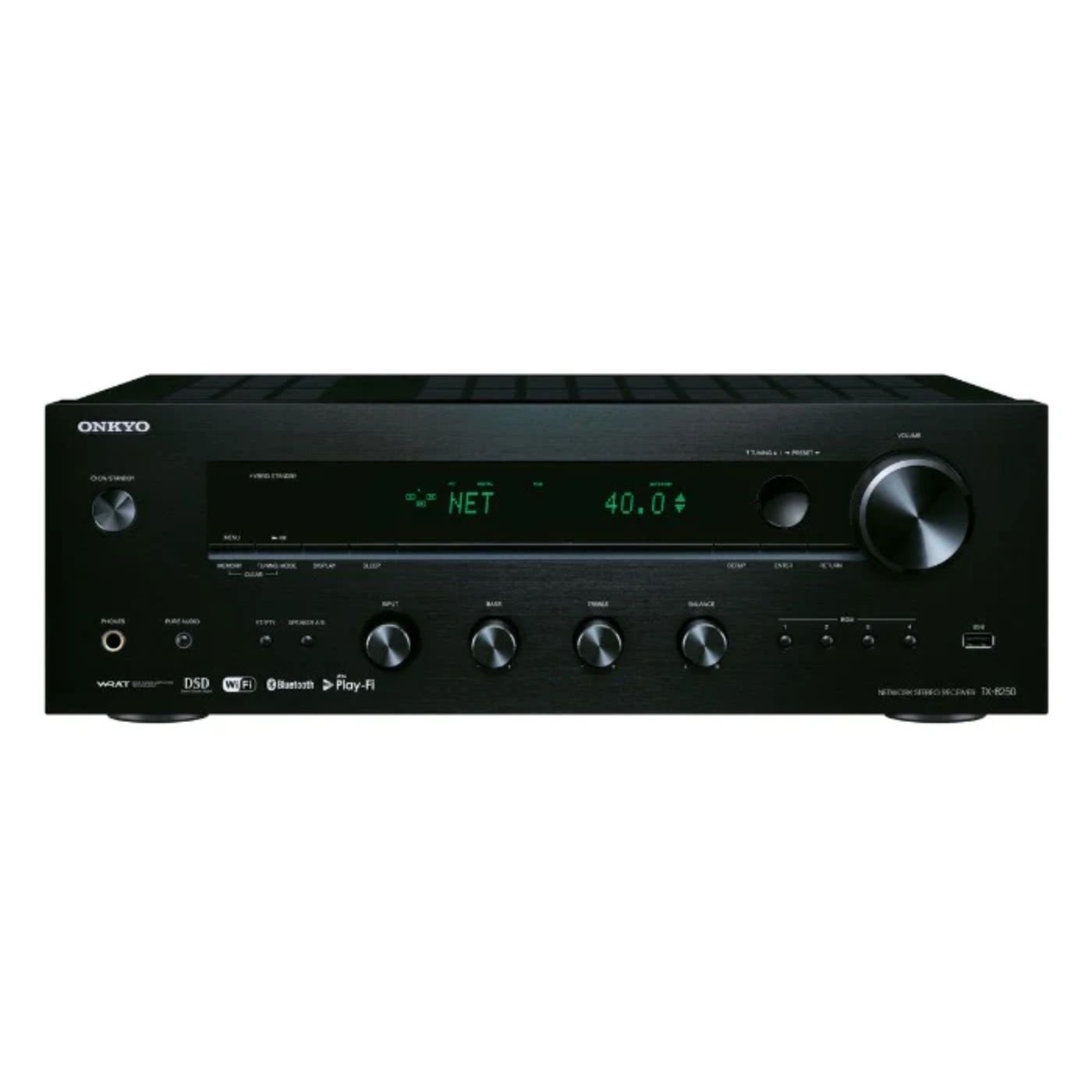

רסיבר קולנוע ביתי מבית ONKYO דגם TX-8250

פרטים תכנים:

USB + AM, FM / RDS, ו- DAB +
Bluetooth® מובנה

135 W/Ch Hi-Current Amplification System
Chromecast built-in, FlareConnect™*1, and DTS Play-Fi®*1 Multi-room Audio
Spotify®, TIDAL, TuneIn, and Deezer Services via Onkyo Controller App*2
5 GHz/2.4 GHz Wi-Fi®, AirPlay, and Bluetooth® Technology
Quality AK4452VN DAC for Hi-Res Audio
MM Phono, Analog, USB, and Digital Audio Inputs
FM/RDS and DAB/DAB+ Radio with 40 Presets
ADVANCED FEATURES

135 W/Ch Stereo Power (6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC); 140 W/Ch (6 Ω, 1 kHz, 10%, 1 Channel Driven, JEITA)

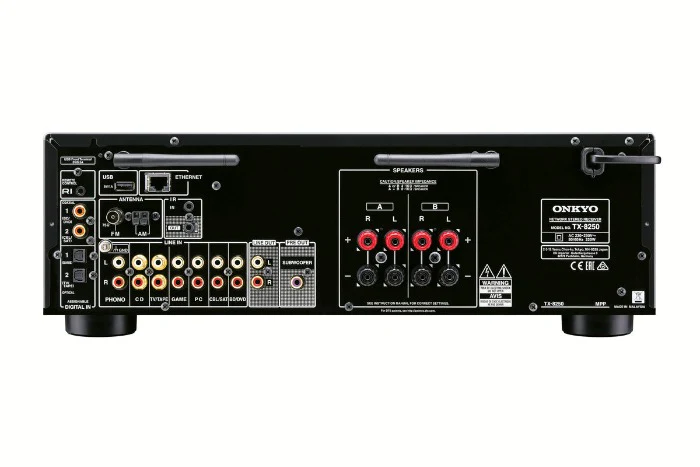

CONNECTION FEATURES

4 Digital Audio Inputs (2 Optical and 2 Gold-plated Coaxial, 192 kHz/24-bit)
6 Gold-plated Analog RCA Inputs and 1 Line Output
Gold-plated Phono Input with MM Equalizer
Subwoofer Pre-Out
Speaker Posts with Screw Knobs
2 USB Inputs (Front: 5 V/0.5 A, Rear: 5 V/1 A)
IR (Infra-red) Input and Output
LAN Input with IP Control Capability for Home Automation Systems
Gold-plated 6.35 mm Headphone Jack
RI (Remote Interactive) Terminal

CIFICATIONS
Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, Play-Fi, the Symbol, and Play-Fi together in combination
with the Symbol are trademarks of DTS, Inc. DTS and Play-Fi are registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. IOS is a trademark upon which Cisco holds the trade mark in the US and
other countries. AirPlay, iPad, iPhone, iPod, iPod touch, iTunes, and Mac are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. “Made for iPod”, “Made for iPhone” and “Made for iPad”
mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and
regulatory standards. Please note that the use of this accessory with iPod, iPhone or iPad may affect wireless performance. AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X Mountain Lion or later, and PC with iTunes 10.2.2 or later. Android, Google
Play, Chromebook and the Chromecast built-in are trademarks of Google Inc. Windows is a trademark of the Microsoft group of companies registered in the U.S. and other countries. Wi-Fi® is a registered trademark of the Wi-Fi Alliance. The Wi-Fi CERTIFIED Logo is a certification mark
of the Wi-Fi Alliance. Spotify and the Spotify logo are trademarks of the Spotify Group, registered in the U.S. and other countries. Products displaying the Hi-Res Audio logo conform to the Hi-Res Audio standard as defined by Japan Audio Society. The Hi-Res Audio logo is used under
license from Japan Audio Society. WRAT, FlareConnect, Onkyo Controller, Onkyo Music Control App, and Music Optimizer are trademarks of Onkyo Corporation. All other trademarks and registered trademarks are the property of their respective holders.
NPR No. 17N31 08/17 (10/17 revised)
http://www.onkyo.com/ Copyright © 2017 Onkyo Corporation. All rights reserved.
Amplifier Section
Power Output 135 W/Ch (6 Ω, 1 kHz, 1%,
1 Channel Driven, IEC)
140 W/Ch (6 Ω, 1 kHz, 10%,
1 Channel Driven, JEITA)
Dynamic Power 180 W (3 Ω, Front)
160 W (4 Ω, Front)
100 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance
200 mV/50 kΩ (Line)
2.5 mV/50 kΩ (Phono MM)
Rated RCA Output Level and Impedance
150 mV/470 Ω (Pre-Out)
470 mV/680 Ω (Subwoofer Pre-Out)
Phono Overload 70 mV (MM, 1 kHz, 0.5%)
Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control ±10 dB, 100 Hz (Bass)
±10 dB, 10 kHz (Treble)
Signal-to-Noise Ratio 106 dB (IHF-A, Line In, Speaker Out)
80 dB (IHF-A, Phono In, Speaker Out)
Speaker Impedance 4 Ω–16 Ω (A or B)
8 Ω–16 Ω (A + B)
Headphone Output Impedance
390 Ω
Headphone Rated Output 200 mW (32 Ω, 1 kHz, 10%)
Tuner Section
Tuning Frequency Range
FM/RDS 87.5 MHz–108 MHz
AM 522/530 kHz–1,611/1,710 kHz
FM/AM/DAB+ Preset Memory
40 Stations
General
Power Supply AC 200–230 V, 50/60 Hz
Power Consumption 220 W
Standby Power Consumption
0.1 W
No-Sound Power Consumption
65 W
Hybrid Standby Power Consumption
2.9 W

מידות- גובה: 14.9 ס"מ
– רוחב: 43.5 ס"מ
– עומק:32.9 ס"מ
– משקל: 8.5 ק"ג
