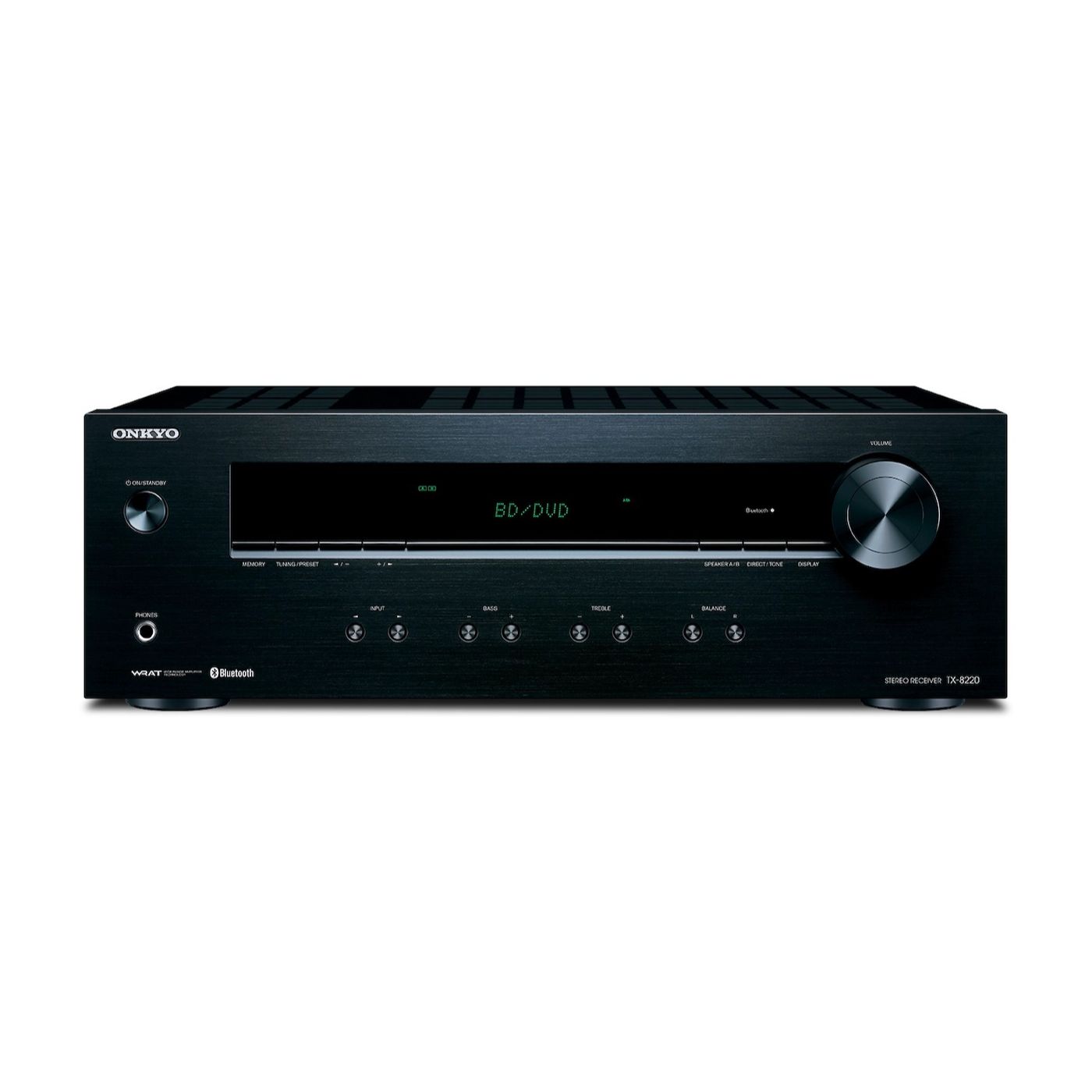

רסיבר קולנוע ביתי מבית ONKYO דגם TX-8220

פרטים תכנים:

100 W/Ch Hi-Current Amplification System
Bluetooth® Audio Streaming Technology for Almost Any Device
DAB+ and FM/RDS Radio Tuners with 40 Station Presets
MM Phono, Analog, and Digital Audio Inputs
Hi-Current Discrete Amplification System
ADVANCED FEATURES

100 W/Ch Stereo Power (6 Ω, 1 kHz, 10%, 1 Channel Driven, IEC)
Stream from Mobiles, Smartphones, Tablets, Laptops, and PC via Bluetooth Version 4.1 (A2DP/AVRCP) with Bluetooth Standby and Auto Connect Functions
DAB+ and FM/RDS Radio Tuners with 40-Station Memory Presets
Radio Station Preset Naming (Up to 8 Characters)
WRAT (Wide Range Amplifier Technology) with Massive Hi-Current EI Transformer, Custom Power Capacitors, and Low Impedance Drive
Non-Phase-Shift Amp Circuitry with Discrete Power Transistors
Optimum Gain Volume Circuitry
192 kHz/24-bit* (PCM1754) Digital-to-Analog Converter
Direct Mode for Source-Authentic Audio Reproduction
* 96 kHz/24-bit D/A conversion

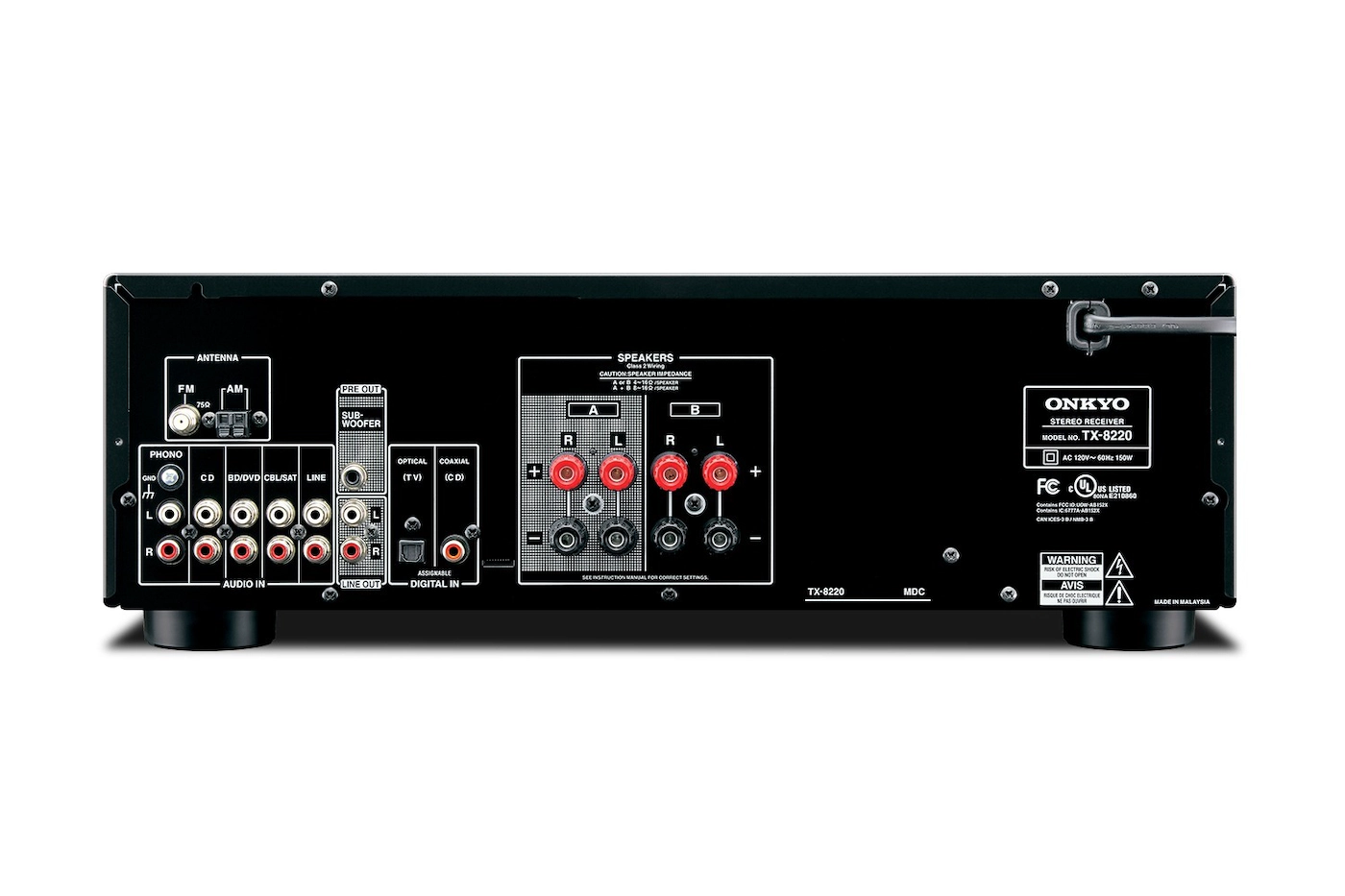

CONNECTION FEATURES

2 Digital Audio Inputs (1 Optical and 1 Coaxial)
4 Analog RCA Inputs and 1 Line Output
Phono Input with MM Equalizer
Subwoofer Pre-Out
Two Pairs of Speaker Posts with Screw Knobs
6.35 mm Headphone Jack
ADDITIONAL FEATURES

Front-panel Bass/Treble/Balance Buttons
Front-panel Speaker A/B Drive Selector Button
3-Mode Display Dimmer (Normal/Dim/Dimmer)
Sleep Timer and Battery-free Memory Back-up
Full-function RI (Remote Interactive) Remote Controller
Bluetooth Standby Mode and Auto Standby

A/B Speaker Posts for Multi-room Audio

TX-8220 features two sets of speaker posts enabling connection of two pairs of speakers. The receiver is designed to drive either a single pair of speakers rated at 4–16 Ω, or two pairs of 8–16 Ω speakers, allowing you to enjoy the same audio source in two rooms at once, or to easily switch between two sets of speakers.

Amplifier Section
Power Output 100 W/Ch
(6 Ω, 1 kHz, 1%, 1 Channel Driven, IEC)
Dynamic Power 140 W (3 Ω, Front)
120 W (4 Ω, Front)
80 W (8 Ω, Front)
THD+N (Total Harmonic Distortion + Noise)
0.08% (20 Hz–20 kHz, Half Power)
Input Sensitivity and Impedance
Line 450 mV/40 kΩ
Phono MM 10 mV/50 kΩ (IHF-A)
Rated RCA Output Level and Impedance
420 mV/2.2 kΩ (Line-Out)
2.8 mV/3.3 kΩ (Subwoofer Pre-Out)
Phono Overload 40 mV (MM, 1 kHz, 0.5%)
Frequency Response 10 Hz–100 kHz/+1 dB, -3 dB (Direct Mode)
Tone Control ±12 dB, 100 Hz (Bass)
±12 dB, 10 kHz (Treble)
Signal-to-Noise Ratio 100 dB (IHF-A, Line In, Speaker Out)
93 dB (IHF-A, Phono In, Speaker Out)
Speaker Impedance 4 Ω–16 Ω (A or B)
8 Ω–16 Ω (A + B)

Headphone Output Impedance
390 Ω
Headphone Rated Output 60 mW (32 Ω, 1 kHz, 10%)
Tuner Section
Tuning Frequency Range
FM 87.5 MHz–108 MHz
FM/DAB+ Preset Memory 40 Stations

General
Power Supply AC 220–240 V, 50/60 Hz
Standby Power Consumption
0.4 W
No-Sound Power Consumption
20 W

Supplied Accessories
• Indoor FM/DAB+ antenna • Instruction manual
• Remote controller • AAA (R03) batteries x 2

מידות- גובה: 14.9 ס"מ
– רוחב: 43.5 ס"מ
– עומק:32.8 ס"מ
– משקל: 7 ק"ג
